DK  Series

Applications and installation

The DK series pumps are recommended for pumping clean water and chemically non-aggressive liquid. They have compact size and are extremely reliable, very simple to use, efficient and almost maintenance-free. They are suitable for boosting pressure water supplying for household, irrigation, general industrial applications, etc...

Pumps should be installed in a covered area, protected

against the weather.

Operating limitations

Max ambient temperature up to 40℃

Max fluid temperature up to 80℃

Max pressure up to 10 bar

Construction features

Pump Body: cast iron

Motor Housing: aluminum

Shaft: 45# steel /stainless steel

Impeller: Brass

Motor: closed, externally ventilated

Insulation Class: B/F

Protection Class: IP44 /IP54

Duty: continuously rated

Mechanical Seal: ceramic steatite/ metalized carbon

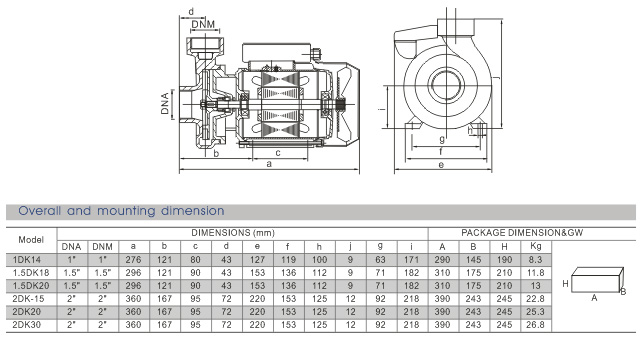

Technical parameters
